AGM NIGHT VISION GOGGLE /BINO DUAL TUBE GEN 3

Currency:USD Category:Firearms & Military Start Price:5,000.00 USD
AGM NIGHT VISION GOGGLE /BINO DUAL TUBE GEN 3
SOLD
Sign In To View Winning Bid
This item SOLD at 2022 Aug 18 @ 10:59UTC-5 : EST/CDT
Flat rate shipping of $25 per gun!

Non-Firearm items ship at flat rate of $15.95 per auction session!

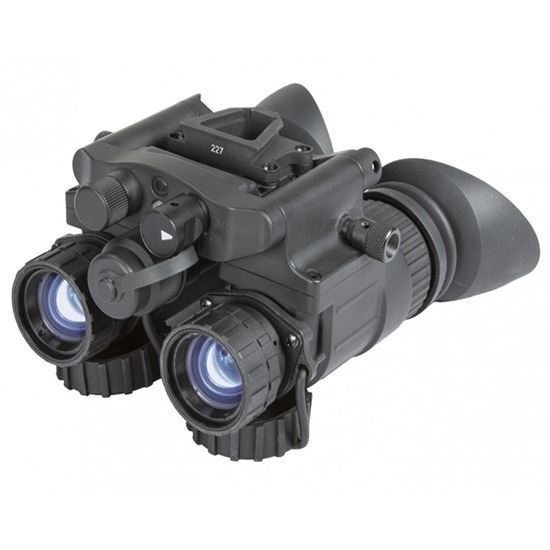

The AGM NVG-40 is a dual-channel night vision system. With a 40° field of view, it provides a large visual field without needing to move the binoculars. The NVG-40 uses advanced multi-coated optics and is built to last with a compact composite housing. Operating from a single AA alkaline battery or CR123A battery, the NVG can run up to 20 hours. Also equipped with an integral infrared illuminator for reading in the dark.
For hands-free use of the NVG, it can be installed to many various mounts, such as the AN/PVS-7D, AN/PVS-14, AN/PVS-7A/C, AN/PVS-15, and AN/PVS-18 mounts, or to the mounts with mini-rail interface.
NVG Interface Shoe (preinstalled) is used for installing the NVG to a either standard dovetail type headset and helmet mount.
Bayonet/Horn Interface Shoe (included) is used for installing the NVG to a either standard bayonet/horn type headset and helmet mount.
NVG Interface Shoe with Connector (optional) is used for installing the NVG-40/NVG-50 to either standard dovetail type headset and helmet mounts and connecting the Battery Pack.
Mini-Rail Interface Shoe is used for installing the NVG to the mounts with mini-rail interface. Mini-Rail Interface Shoe is included to the optional AGM Goggle Kit W and AGM Helmet Mount
Redundant dual-tube design
True stereoscopic vision
Lightweight & compact
Head or helmet mountable for hands-free operation
Bright light cut-off
Ergonomic, simple, easy to operate controls
Built-in Infrared illuminator and flood lens
Utilizes single CR123A lithium or AA battery
Limited 3-year warranty
Specifications
Image Intensifier Tube: Gen 3 Auto-Gated "White Phosphor Level 1"
Resolution: 64-72 lp/mm
Field of view cleanness by zone: Gen 3 IIT 3AW1 is offered with high quality and practically no visible spots in Zone 1.
Magnification: 1x
Lens System: 27 mm, F/1.3
FOV: 40°
Focus Range: 0.25 m to Infinity
Eye Relief: 25 mm
Diopter Adjustment: -6 to +2 dpt
Led Indicators: Low Battery IR On Excessive Light Conditions
Infrared Illuminator: Yes; Two power levels
Manual Gain Control: Yes
Bright Light Cut-Off: Yes
Automatic Shut-Off System: Yes
Battery Type: One CR123A (3V) or AA (1.5 V)
Battery Life (Operating): Up to 20 hours at 20°C (up to 80 hrs with optional battery pack)
Operating Temperature Range: -40°C to +50°C (-40°F to +122°F)
Storage Temperature Range: -50°C to +70°C (-58°F to +158°F)
Weight: 645 g (1.42 lbs)
Overall Dimensions: 115 × 118 × 74 mm (4.5 × 4.6 × 2.9 in)
Package Includes: Night Vision Goggles, Goggle Kit, Soft Carrying Case, Lens Cloth, Battery Adapter, User Manual
