Himiway A7 Pro Electric Commuter Bike

Currency:USD Category:Firearms & Military Start Price:10.00 USD Estimated At:NA

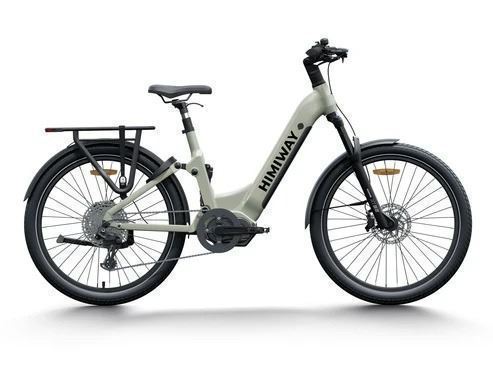

Himiway A7 Pro Electric Commuter Bike
SOLD
Winning Bid Undisclosed
This item SOLD at 2024 Sep 30 @ 08:04UTC-5 : EST/CDT
Flat rate shipping of $29.95 per gun! Non-Firearm items ship at flat rate of $19.95 per auction session!

This bike may ship in Light Gray, Emerald Green, Green, Dark Orange or Black & White Gradient color. If you have a color preference, please let us know immediately after the auction and we'll do our best to meet your request.

A – total length
76
B – handlebar height
44
C – handlebar length
27.2
D – wheelbase
48
E – wheel diameter
28.1
F – minimum seat height
24
G – maximum seat height
28.7
H – chain stay length
19.3
I – frame stack
19.2
K – effective top tube length
24
M – head angle
70°
N – standover height
21.6
Frame
6061 Aluminum frame
Headset
TOPYCWZ-5662-01 52*52*39.8
Fork
SR-SUNTOUR X1-BOOST 120mm travel
Shock
DNM AO-06 /165*38mm BK
Front wheel
Rim: DM-350 27.5""*13G*36H SV | Spoke: 13G 263L STAINLESS(304M) | Hub: DM41SB-B15 13G*36H*110
Rear wheel
Rim: DM-350 27.5"*13G*36H SV | Spoke: 13G 265L STAINLESS(304M) | Hub: M102R-148 12*13*36*148
Tires
SCHWALBE SUPER MOTO-X 27.5*2.4
Battery
Samsung/LG 48V 15Ah
Motor
ANANDA M100 48V-500W mid-drive motor
Display
BIGSTONE M300C-TFT
Sensors
Torque sensor丨shifting sensor丨speed sensor丨brake sensor
Crankset
Crank arm: PROWHEEL A00C 170mm 44A-S2-CL41 BCD104 | Chain ring: PROWHEEL 44T 104BCD Narrow wide chainring
Cassette
Shimano CS-HG201-9 11-34T
Chain
KMC E9 120L
Groupset
Shimano M3100SGS ALIVO-9S
Front brake
Shimano MT200 hydraulic brake
Rear brake
Shimano MT200 hydraulic brake
Rotors
Shimano RT26 F:180mm R:180mm
Stem
Promax Alloy ssabk
Handlebar
MTB-AL-325BT/Φ31.8*/W:680/6°
Seatpost
ESP-AD635 31.6*350mm | travel:100mm
Saddle
DDK 153MF
Pedal
Aluminum pedal
Lights
48V LED light
Kickstand
Heavy-duty aluminum kickstand
Range
35~50 miles
Controller
48V/22A
Charger
US standard 2.0 A smart charger
Rider height
5′3″ ~ 6′5″
Weight
77 lb.
Max. payload capacity
300 lb.
