Himiway B3 Foldable Electric Commuter Bike

Currency:USD Category:Firearms & Military Start Price:10.00 USD Estimated At:NA

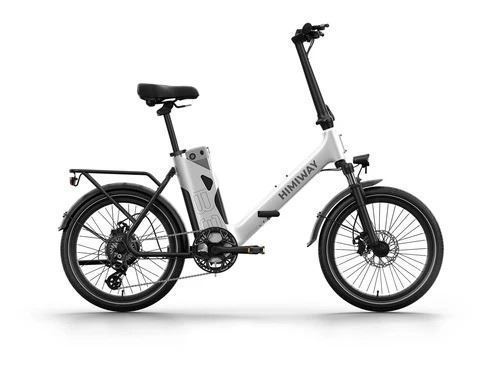

Himiway B3 Foldable Electric Commuter Bike
SOLD
Winning Bid Undisclosed
This item SOLD at 2024 Jul 22 @ 10:10UTC-5 : EST/CDT
Flat rate shipping of $29.95 per gun! Non-Firearm items ship at flat rate of $19.95 per auction session!

Please be sure that the item you are bidding on is legal to ship to your shipping address. There is a 25% cancellation fee if you win an item that is not legal to ship!

Our items ship from multiple sellers. Some items will ship right away and other items may take 30 or more days to ship to you, depending on the seller.

This E-Bike may ship in white, spring bud greed, or cream, or indigo blue color. If you have a color preference, please let us know immediately after the auction close and we will try to meet your request.
A – total length
63.8
B - handlebar height
45.3
C – wheelbase
42.5
D – minimum seat height
31.5
E – maximum seat height
39.5
F – chain stay length
15.4
G – frame stack
22.5
H – effective top tube length
26
I – wheel diameter
20.8
J – head tube length
5.5
K – handlebar length
23.6
L – frame reach
17.7
M – head angle
70°
N – standover height
18.8
Frame
Front: 6061 aluminum Rear:A356 Steel
Headset
Neco H510
Fork
Coil suspention fork, 40mm travel, is disc mount
Front wheel
Rim: MD-260 20*2.5""*36H*13G A/V | Spoke: 13G*171MM/172MM | Hub: MS-37F 13G*36H*100mm
Rear wheel
Rim: MD-260 20*2.5""*36H*13G A/V | Spoke: 13G*133MM/134MM | Hub: 48v 500w Himiway Hub Motor
Tires
Innova 20x2.40 lA-1283
Battery
48V15AH LG 21700 IP65 720Wh
Motor
500w Himiway brushless gear motor
Display
Himiway LCD Display
Throttle
Thumb throttle
Sensors
Torque sensor丨speed sensor丨brake sensor
Crankset
Crank arm:6061-T6 145mm | Chain ring: 44T narrow wide steel chainring BCD104
Cassette
Shimano MF-TZ500-7 14-28T
Chain
KMC Z8.3 EPT 100L
Groupset
Shimano altus M310 7 speed
Front brake
Nutt JAK-8 mechanical disc brake
Rear brake
Nutt JAK-8 mechanical disc brake
Rotors
F:160mm R:160mm
Stem
Folding stem, riser length: 360mm
Handlebar
JY-A153 W:600
Seatpost
Himiway flip seatpost 27.2*300
Saddle
Himiway TTZ032X
Pedal
Aluminum pedal
Lights
48V LED light
Kickstand
Aluminum kickstand
Range
70 miles
Controller
48V/18A
Charger
US standard 2.0 A smart charger
Rider height
5'~6'
Weight
60.6 lb.
Max payload capacity
300 lb.
