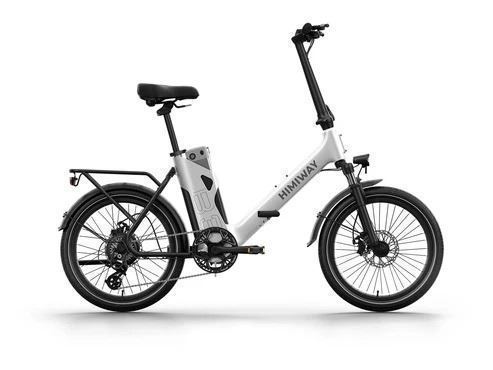

Himiway B3 Foldable Electric Commuter Bike

Currency:USD Category:Firearms & Military Start Price:10.00 USD Estimated At:NA
Himiway B3 Foldable Electric Commuter Bike
SOLD
Winning Bid Undisclosed
This item SOLD at 2024 Dec 11 @ 09:27UTC-6 : CST/MDT
Flat rate shipping of $39.95 per gun! Non-Firearm items ship at flat rate of $29.95 per auction session!

This E-Bike may ship in white, spring bud greed, or cream, or indigo blue color. If you have a color preference, please let us know immediately after the auction close and we will try to meet your request.
A – total length
63.8
B - handlebar height
45.3
C – wheelbase
42.5
D – minimum seat height
31.5
E – maximum seat height
39.5
F – chain stay length
15.4
G – frame stack
22.5
H – effective top tube length
26
I – wheel diameter
20.8
J – head tube length
5.5
K – handlebar length
23.6
L – frame reach
17.7
M – head angle
70°
N – standover height
18.8
Frame
Front: 6061 aluminum Rear:A356 Steel
Headset
Neco H510
Fork
Coil suspention fork, 40mm travel, is disc mount
Front wheel
Rim: MD-260 20*2.5""*36H*13G A/V | Spoke: 13G*171MM/172MM | Hub: MS-37F 13G*36H*100mm
Rear wheel
Rim: MD-260 20*2.5""*36H*13G A/V | Spoke: 13G*133MM/134MM | Hub: 48v 500w Himiway Hub Motor
Tires
Innova 20x2.40 lA-1283
Battery
48V15AH LG 21700 IP65 720Wh
Motor
500w Himiway brushless gear motor
Display
Himiway LCD Display
Throttle
Thumb throttle
Sensors
Torque sensor丨speed sensor丨brake sensor
Crankset
Crank arm:6061-T6 145mm | Chain ring: 44T narrow wide steel chainring BCD104
Cassette
Shimano MF-TZ500-7 14-28T
Chain
KMC Z8.3 EPT 100L
Groupset
Shimano altus M310 7 speed
Front brake
Nutt JAK-8 mechanical disc brake
Rear brake
Nutt JAK-8 mechanical disc brake
Rotors
F:160mm R:160mm
Stem
Folding stem, riser length: 360mm
Handlebar
JY-A153 W:600
Seatpost
Himiway flip seatpost 27.2*300
Saddle
Himiway TTZ032X
Pedal
Aluminum pedal
Lights
48V LED light
Kickstand
Aluminum kickstand
Range
70 miles
Controller
48V/18A
Charger
US standard 2.0 A smart charger
Rider height
5'~6'
Weight
60.6 lb.
Max payload capacity
300 lb.
