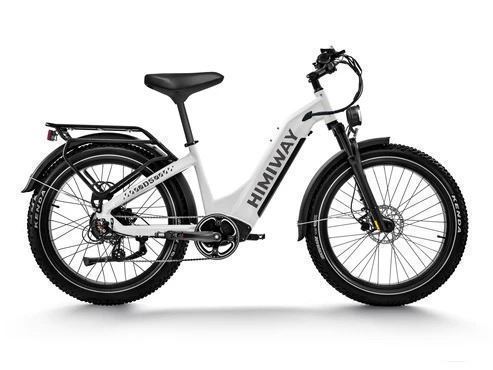

Himiway D5 Zebra Step Thru All Terrain Electric Bike

Currency:USD Category:Firearms & Military Start Price:10.00 USD Estimated At:NA
Himiway D5 Zebra Step Thru All Terrain Electric Bike
SOLD
Winning Bid Undisclosed
This item SOLD at 2024 Dec 18 @ 08:50UTC-6 : CST/MDT
Flat rate shipping of $39.95 per gun! Non-Firearm items ship at flat rate of $29.95 per auction session!

This E-Bike may ship in space grey, white or green color . If you have a color preference, please let us know immediately after the auction close and we will try to meet your request.

A – total length
78.7
B – handlebar height
47
C – handlebar length
28
D – wheelbase
49.2
E – wheel diameter
28.7
F – minimum seat height
20.9
G – maximum seat height
31.4
H – chain stay length
19
I – frame stack
24.6
J – frame reach
17.8
K – effective top tube length
24.4
L – head tube length
5.5
M – head angle
65°
N – standover height
ST 22.4/ SO 31.1
Frame
6061 Aluminum frame
Headset
Neco H156EM 28.6*44-56*30
Fork
TRAMA FAT34-PLS-26" 100mm travel 15*135mm thru axle
Shock
Alloy front suspension fork with lockout and adjustment
Front wheel
Rim: MD-147 26*4.0"*36H*12G A/V | Spoke: 12G 255/256L stainless (304M) | Hub: MB015-92 M9*12G*135*145W
Rear wheel
Rim: MD-147 26*4.0"*36H*12G A/V | Spoke: 12G 256/257L stainless (304M) | Hub: GSMB019R-190F-GM14
Tires
Kenda 26*4.0
Battery
Samsung/LG 48V 20Ah
Motor
500W mid-drive motor
Display
KD718-P LCD display with Type-c charger
Throttle
Thumb throttle 1
Sensors
Torque sensor丨shifting sensor speed sensor丨brake sensor
Crankset
Crankarm: Prowheel 170mm / Chain ring: 44T BCD104
Freewheel
Shimano CS-HG201-9 11-36T
Chain
KMC E9 EPT 124L
Groupset
Shimano altus M2000 9 speed
Front brake
Tektro HD-E350 hydraulic brake
Rear brake
Tektro HD-E350 hydraulic brake
Rotors
Tektro TR180-52 F:180mm R:180mm
Stem
Zoom TDS-C269-8FOV 31.8*90mm
Handlebar
Promax HB-3188 22.2*31.8*700mm
Seatpost
Himiway Seatpost
Saddle
Himiway Saddle
Pedal
Aluminum pedal
Lights
48V LED light
Kickstand
Heavy-duty aluminum kickstand
Range
60-80 miles
Controller
48V/22A
Charger
US standard 3.0 A smart charger
Rider height
5'1" ~ 6'5"
Weight
79 lb. (with battery)
Max. payload capacity
400 lb.
